TORNADO P VAC 3000

The TORNADO P-Vac 3000 was manufactured for universal lifetime purposes, 38  concentrations remove all restrictions to specific concentration applications. The generators broad-spectrum range and capability ensures guaranteed customer satisfaction. Inbuilt vacuum pump 8.5L Per min.

Clincial/Non-clinical application Ozone Generator 1-110 ug/ml


Corona Discharge Method

Quartz Glass (Electrodes) ozone generator for therapeutic applications. Installed with dual glass electrodes producing therapeutic grade ozone.

Ozone concentration accuracy range within 0.2 ppb UV Photometer.


Vacuum pump

Installed vacuum pump for advancing applications and eliminating residual ozone from application equipment via ozone destruct. This function allows safe operation indoors and increases the life expectancy of accessories.

Vacuum pump rate is 8.5 Litres per minuit

Oxygen Source



The recommended oxygen source for this machine is via cylinder only.

The recommended Regulator - Oxygen Regulator CE European Compliant, Regulatory status: Complies with Medical Devices Directive 93/42/EEC, Complies with EN ISO 10524-1 Complies with EN 1789 Production in accordance with EN ISO 9001 and EN ISO 13485 Classification: Class IIb

CE - marking: CE0434


TORNADO P-VAC 3000


Application Range Protocols


1.Minor Auto-hemotherapy

2.Ozonation Pure Water for therapeutic benefits (range 1-103 ug/ml)

3.Ozonation Saline (Aquarius Solutions - Sodium chloride)

4.Auricular ozone application ( allowing flexible user progression)

5.Rectal ozone application (requires oxygen purity beyond 95%)

6.Topical Applications

7.Intracutaneous Application (requires oxygen purity beyond 95%)

8.Transcutanous Immersion (Bagging)

9.Respiratory system inhalation (ozonides)




Purchase

TORNADO PVAC 3000

Performance Details




1. 38 variable therapeutic ozone concentrations ranging from 1-110ug/ml (micro grams per milliliter)

2. 4 multi-level settings

3. Built in ozone destruct system

with built in vacuum pump 8.5L per min

4. Di-electric Method

Glass Electrode technology

5. 12V DC (100-240 AC TO 12V DC Adapter (International Voltage Variation)

6. APRV - Automatic Pressure release valve (saftey from system over pressurization)

7. Compatable Flow rate Increments : 1/32 - 1 LPM




New Paragraph

Overview:

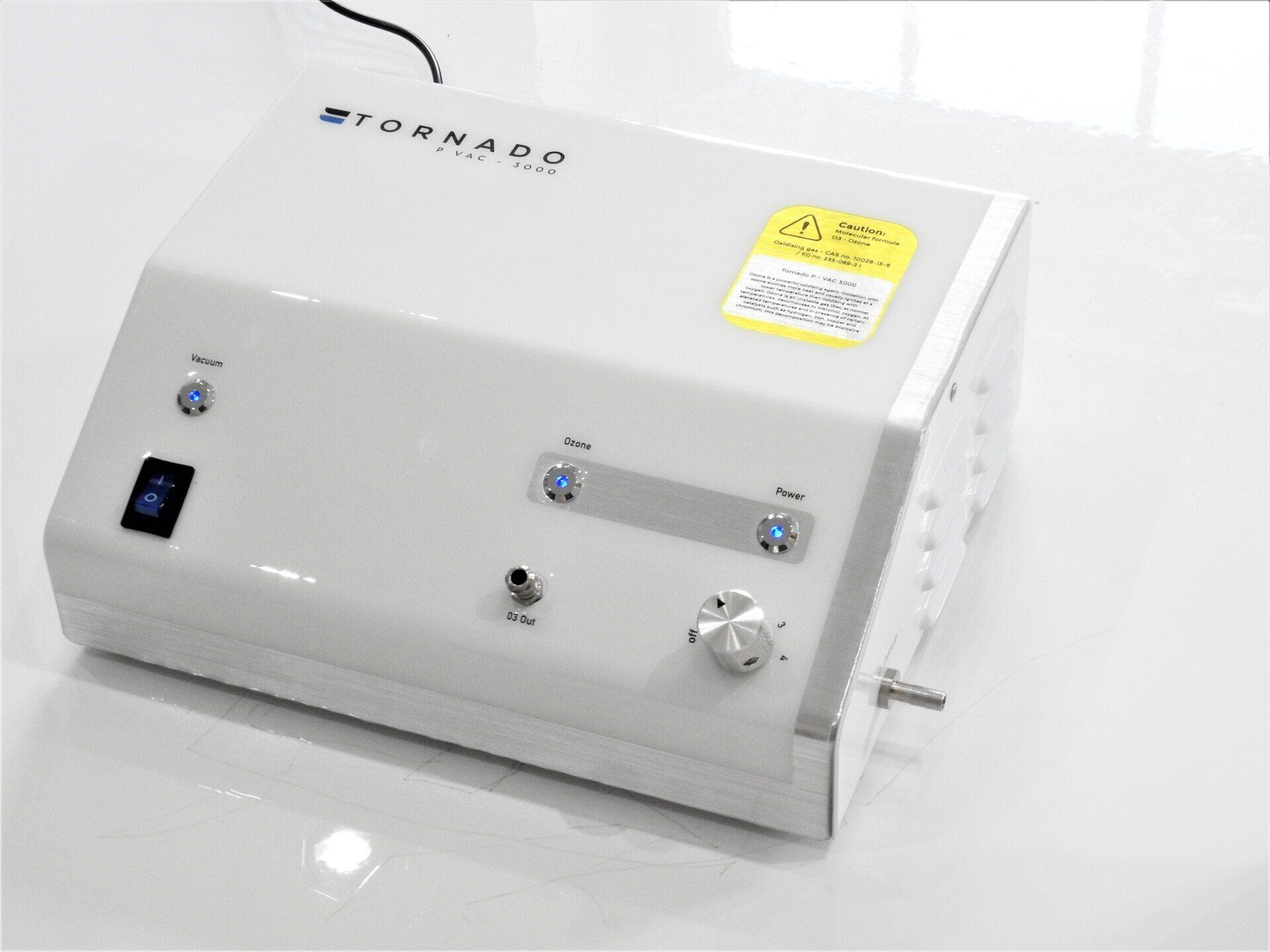

The TORANDO PVAC 3000  is a tabletop portable ozone therapy machine that was primary designed for beginners/Advanced ozone treatments. The generator is simplistic in its operation with easy to use features and convenient ozone destruct unit integrated into the generators housing, allowing all tubing attachments to be connected back and forth from the machine for all applications. The machines ozone concentration capability ranges from 1-110 ug/ml, with a selection of 38 concentrations across all 4 settings. The machines application performance is ''broad'' allowing for all applications the user requires. The generator uses oxygen cylinders and, by means of New Electrode technology Double Glass Di-electric Technology , produces a mixture of oxygen-ozone to be used exclusively for treatments according to the methods described in therapeutic protocols.
